Description
Forged Piston Set
Forged-aluminum pistons for the Toyota 3S-GTE turbo — 86mm bore at 9.0:1 CR, with dual pin oilers, wrist pins and rings included.
86mmBore (STD)
9.0:1Compression ratio
22mmWrist pin diameter
4Pistons per set
Overview
A complete set of four CP-Carrillo forged-aluminum pistons machined for the Toyota 3S-GTE. Dished 9.0:1 crowns with four valve reliefs, standard bore (86mm), full-floating 22mm wrist pins and matched ring pack — designed to survive the high cylinder pressures of a boosted 3S-GTE build.
For 3S-GTE owners rebuilding or upgrading an MR2 Turbo or Celica All-Trac for higher boost, where cast OEM pistons are the weak link. The lower 9.0:1 ratio leaves headroom for aggressive turbo tuning.
Specifications
Bore86mm (3.386", STD)
Compression ratio9.0:1
Stroke86mm
Rod length138mm
Compression height34.925mm (1.375")
Wrist pin22mm, full floating
CrownDished with 4 valve reliefs
MaterialForged aluminum

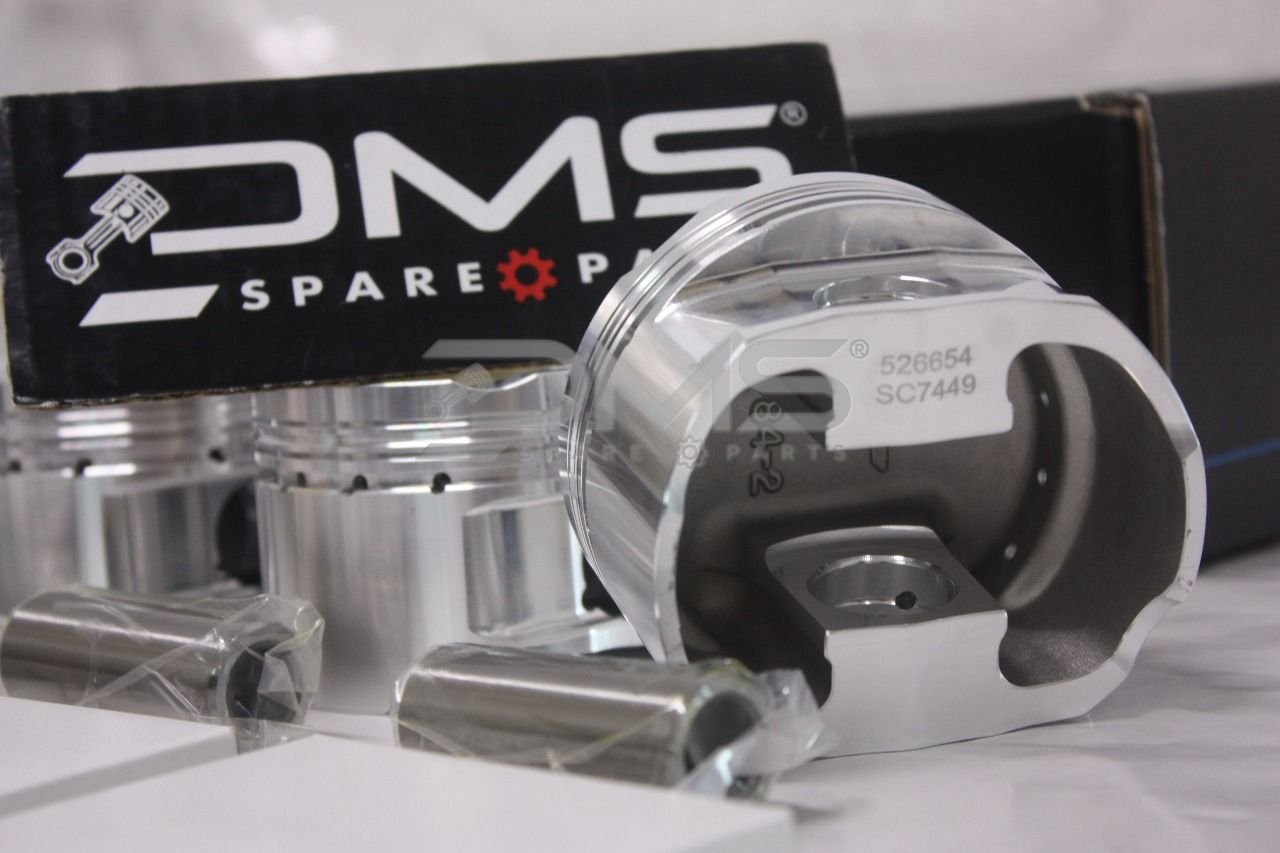

Part numberSC7449 (set) / SC7449-1 (single)
Wrist pin part no.866-2250-15CP1C

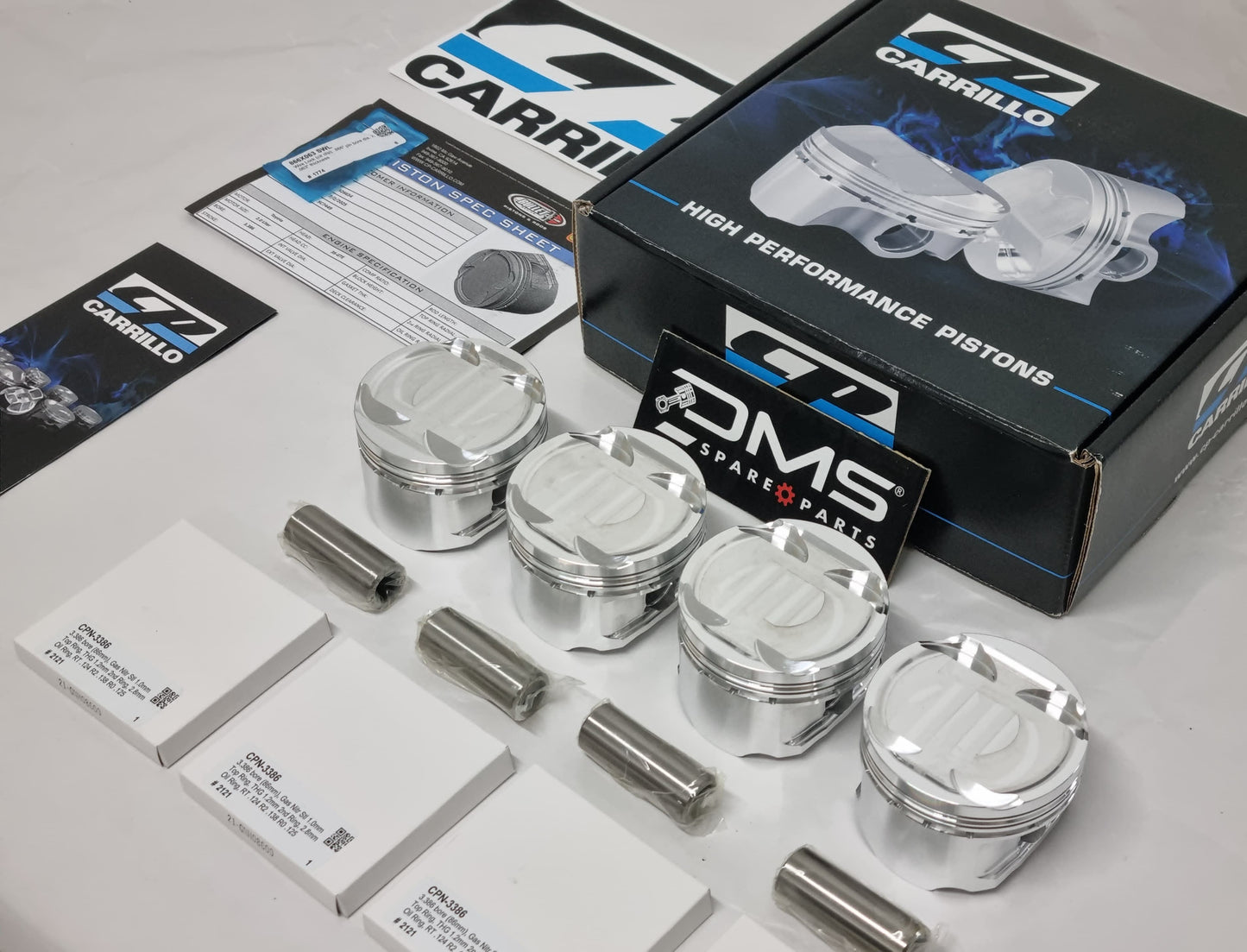

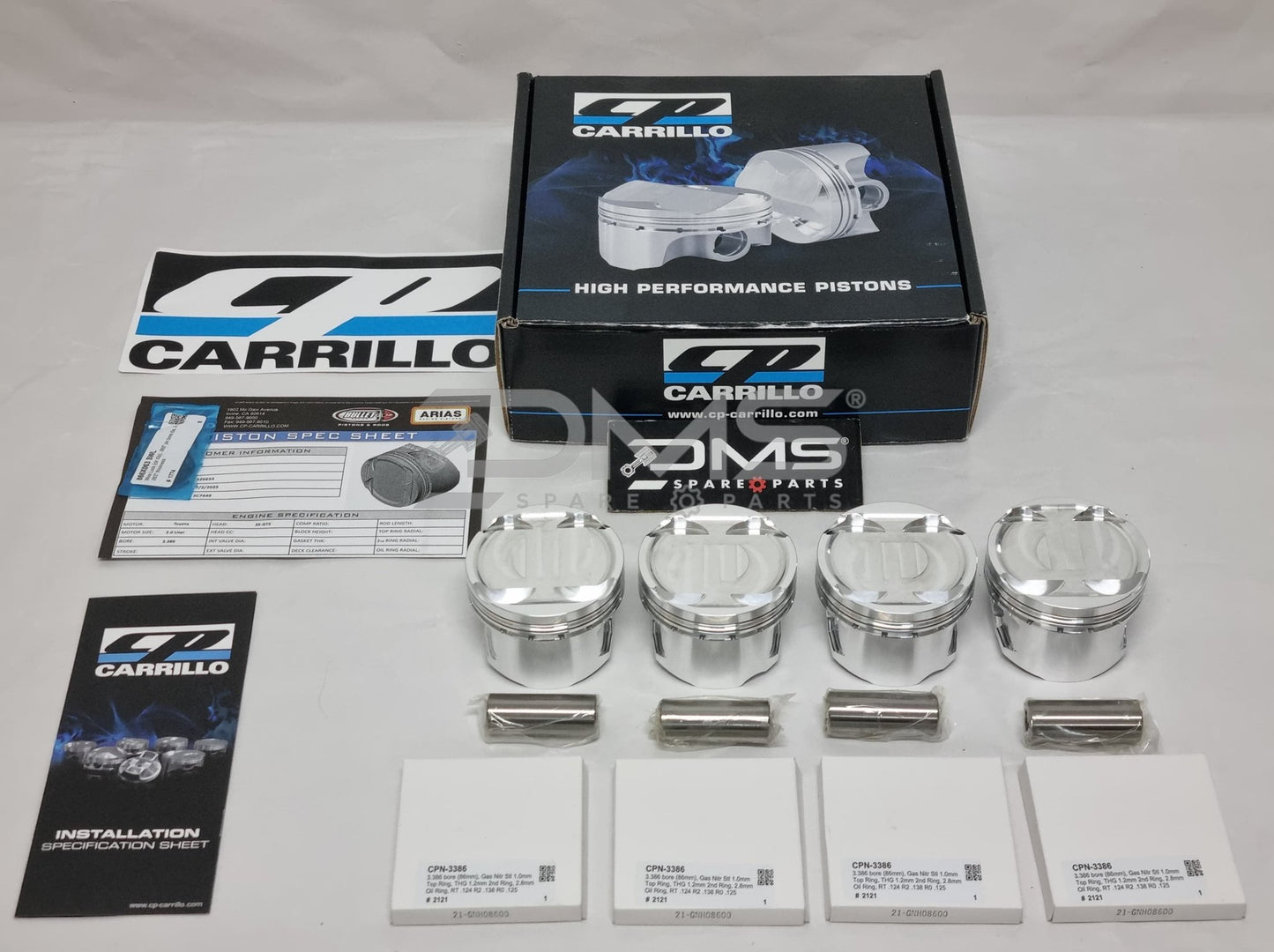

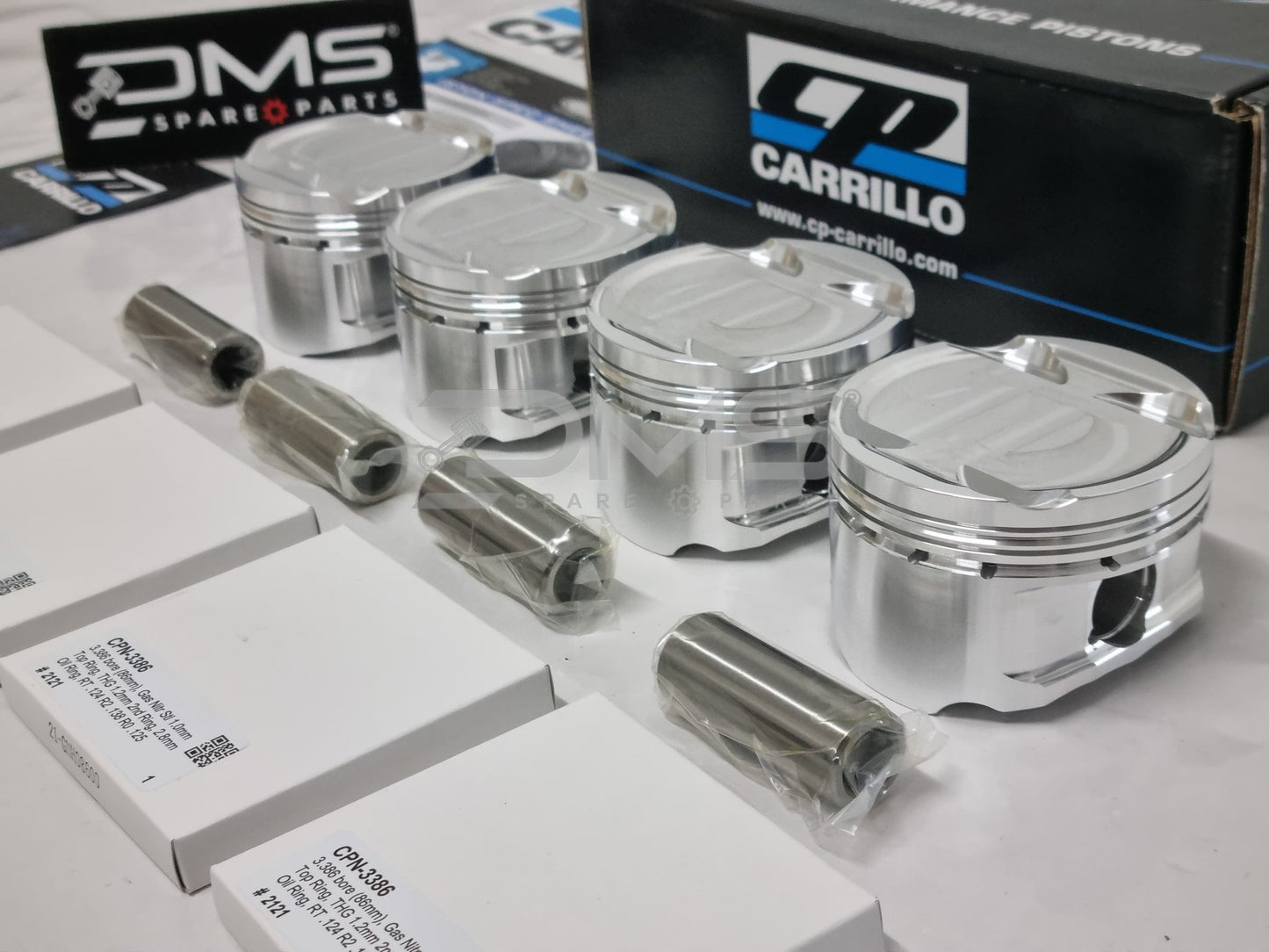

What's in the box
- 4 forged pistons
- full-floating wrist pins
- spiral pin locks (866 063 SWL)
- ring set (CPN 3386)
Fitment
ApplicationToyota 3S-GTE
InstallRequires professional machining and assembly; verify piston-to-wall clearance before final fitment.
Listed for Gen 2/Gen 3 3S-GTE (MR2 SW20 Turbo, Celica All-Trac) — confirm engine generation, bore and oversize before ordering.
Best suited for
Turbo builds
High-boost tuning
Engine rebuild
9.0:1 is a boost-friendly low-compression ratio — intended for turbocharged 3S-GTE builds, not naturally aspirated setups.
Fast dispatchShips in 24–48h
Genuine productAuthentic CP-Carrillo
Easy returns10-day returns, unused items
Fitment helpWe'll confirm before you buy
