Description
Forged H-Beam Rods
Forged 4340 steel H-beam rods for the 2JZ-GTE, rated to 900 HP with 3/8" ARP 2000 bolts and full-floating pin bushings.
5.590"C-to-C length
4340 SteelForged, 2-piece
ARP 20003/8" rod bolts
900 HPPower rating
Overview

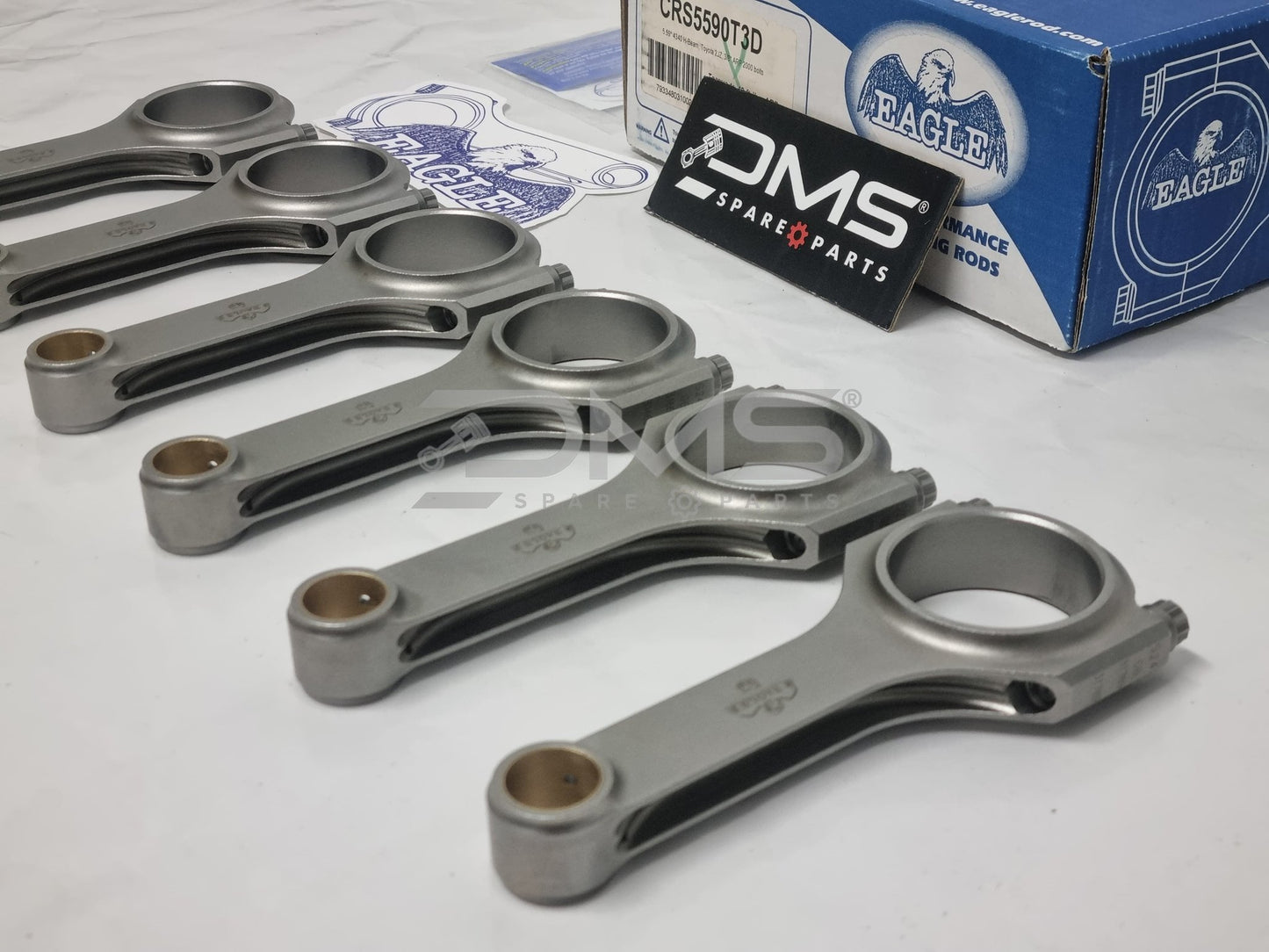

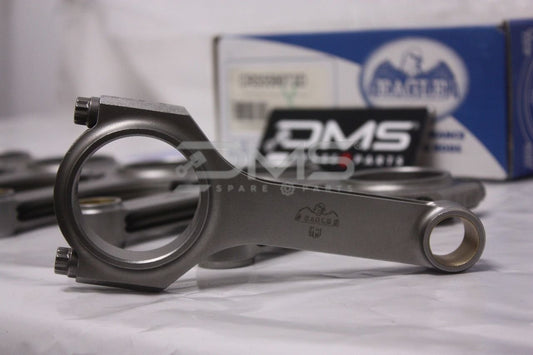

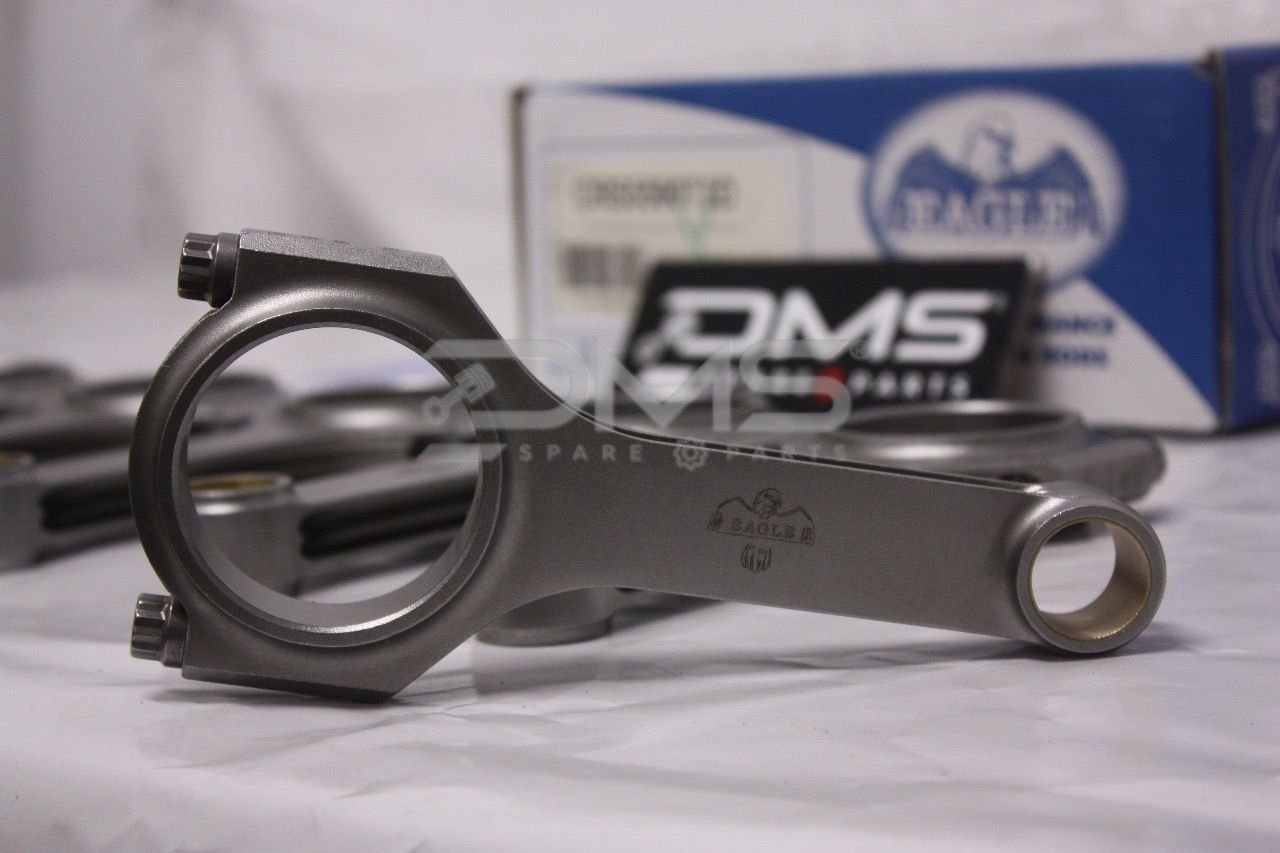

Eagle Specialty Products H-beam connecting rods for the Toyota 2JZ-GTE, forged from two-piece 4340 certified steel and 100% machined to exact, weight-matched tolerances for high-boost builds.
Built for tuners and engine builders taking a 2JZ-GTE beyond stock rod limits, offering a proven, cost-effective foundation for turbocharged power up to roughly 900 HP.
Specifications
Part numberCRS-5590T3D (set of 6)
Center-to-center length5.590" (141mm)
MaterialForged 4340 certified steel, two-piece
Rod bolts3/8" ARP 2000
Piston pin bore0.866" (21.9mm), bushed for full-floating pin
Big end housing bore2.1667"
Rod journal2.047"
Weightapprox. 590g per rod (typical)
Power ratingup to approx. 900 HP
Recommended torque43 ft-lbs with ARP moly lube
What's in the box

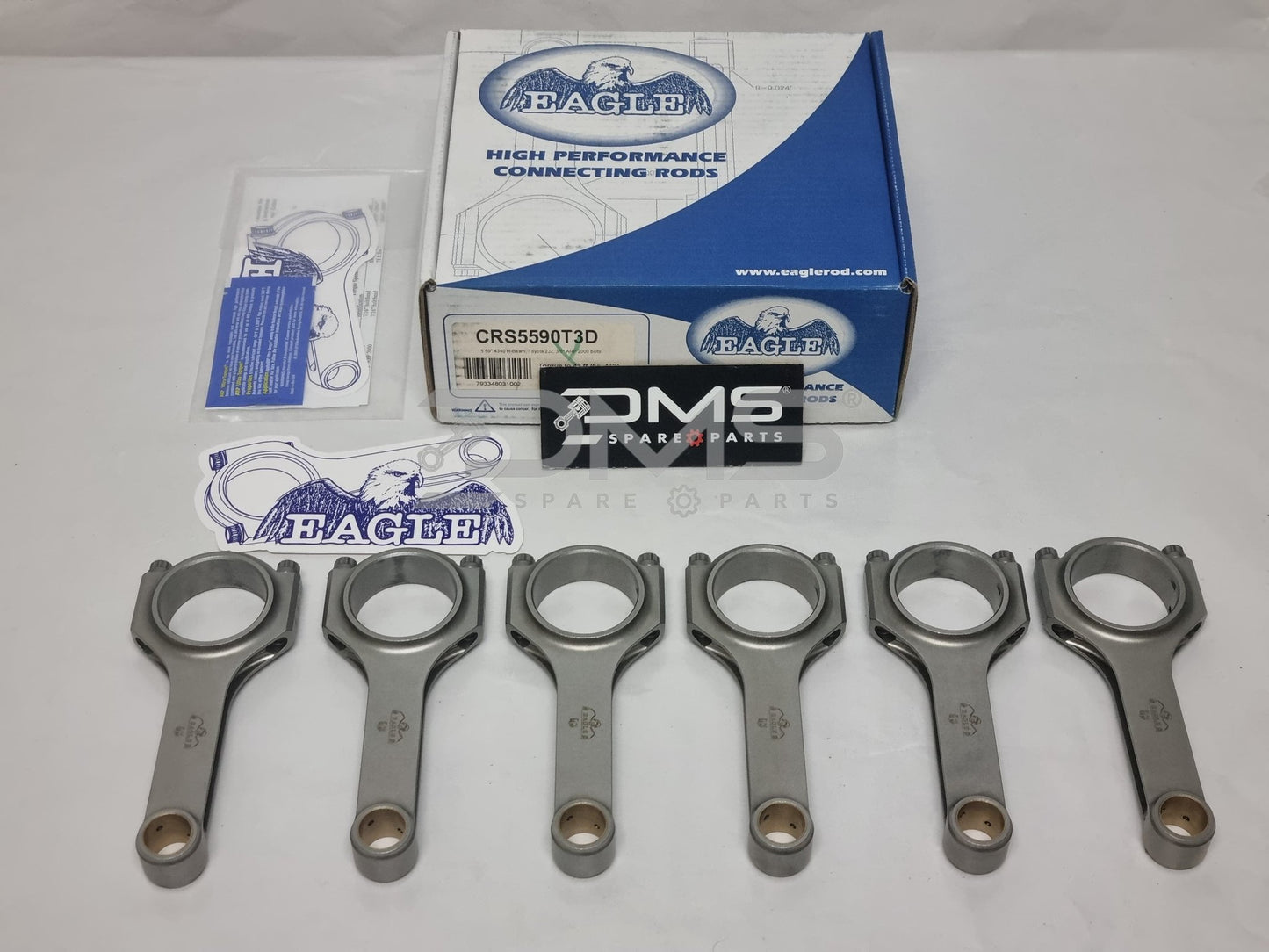

- Set of 6 H-beam connecting rods
- 3/8" ARP 2000 rod bolts installed (pistons and pins not included)
Fitment
ApplicationToyota 2JZ-GTE
InstallRequires professional machine shop assembly and balancing; torque bolts to 43 ft-lbs with ARP moly lube only.
Confirm bearing, pin and rod journal sizing against your specific 2JZ block before ordering.
Best suited for
Turbo Builds
High Horsepower
2JZ Rebuild
Rated to roughly 900 HP; step up to Eagle's 7/16" bolt or Extreme Duty rods for higher power targets.
