Description
Forged Piston Set

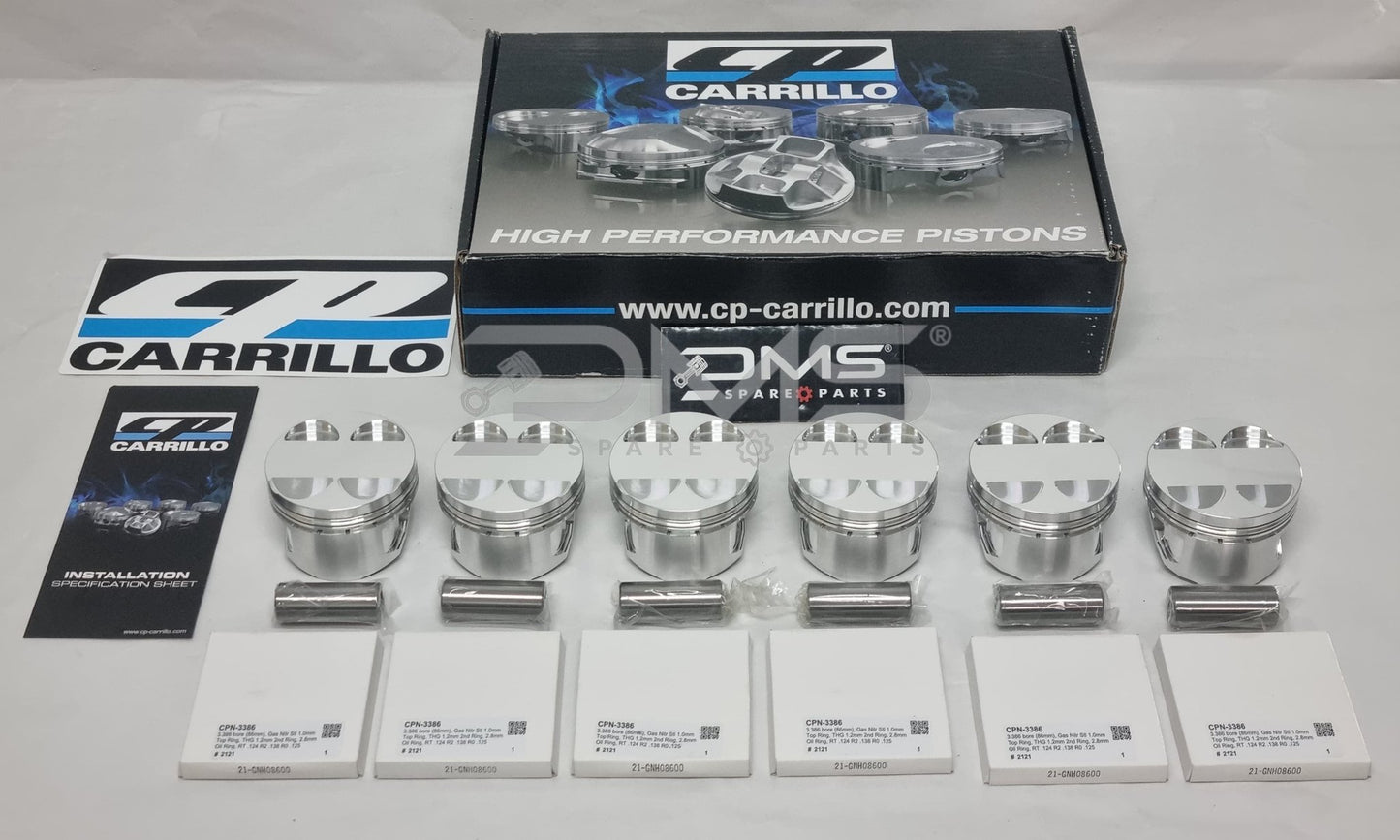

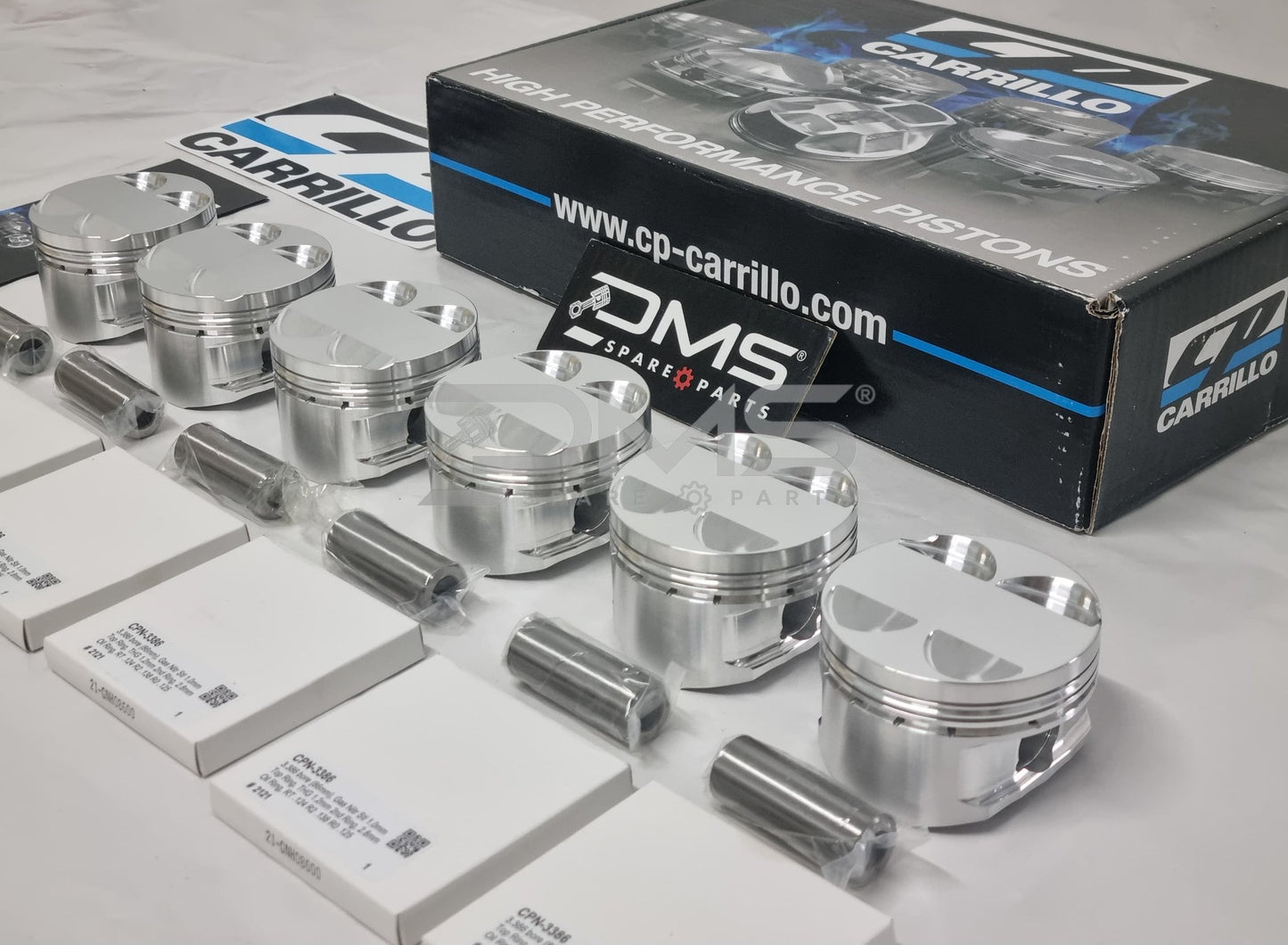

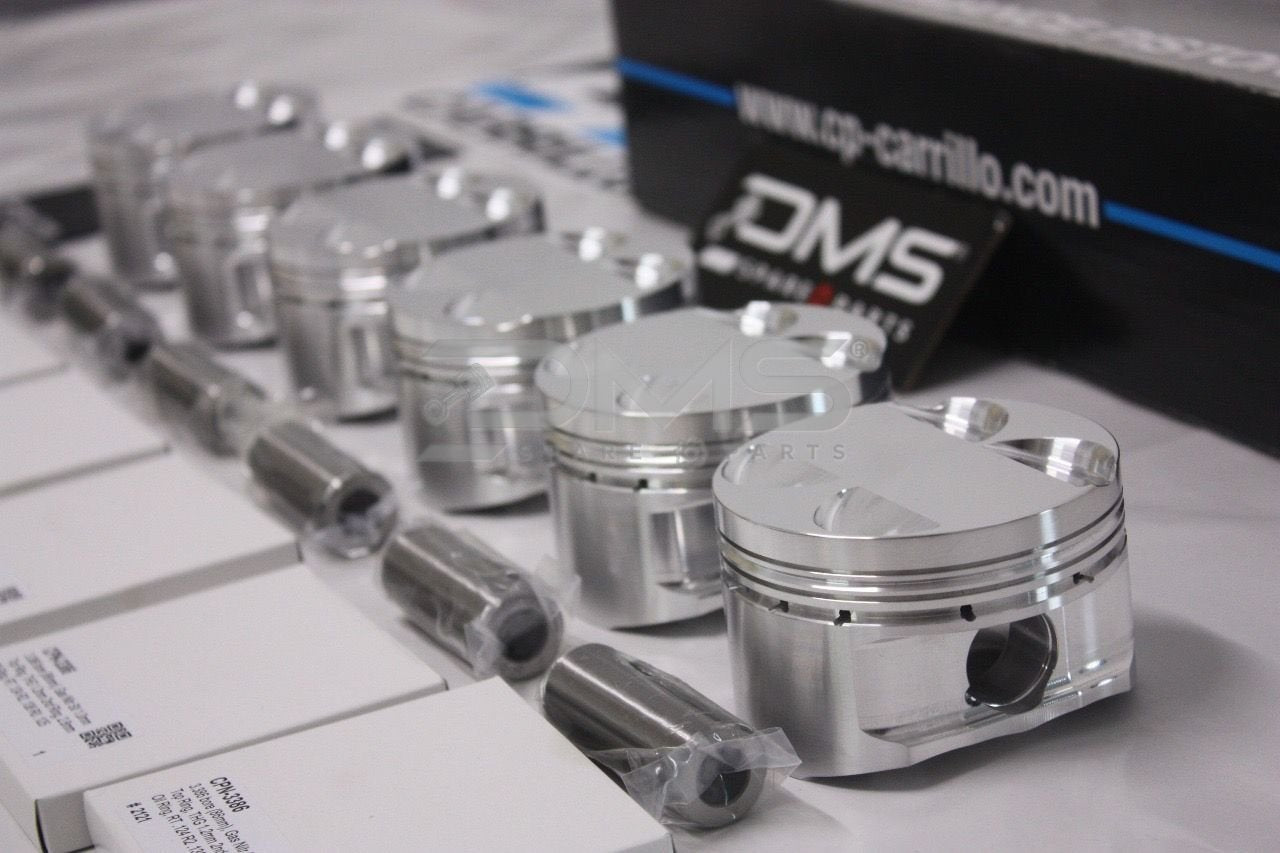

CP-Carrillo 2618 forged pistons for the 2JZ-GTE / 1JZ-GTE, 86mm bore, sold as a complete set of 6 with rings, wrist pins and locks.
86mmStandard bore
Set of 6Pistons per set
2618 alloyForged material
8.5-10:1Compression options
Overview
The CP-Carrillo forged piston set replaces the factory cast 2JZ-GTE / 1JZ-GTE pistons with 2618 aircraft-grade aluminum forgings at 86mm standard bore. Each piston is CNC-machined, balanced to plus/minus 1 gram, and cut with deep valve reliefs to clear high-lift cams and oversized valves. It ships as a complete set of six with the ring pack, wrist pins and pin locks.
Built for high-boost, high-RPM 2JZ and 1JZ builds where the stock cast pistons are the limiting factor. Select the compression ratio (8.5:1, 9.0:1 or 10.0:1) to match your target power and fuel.
Specifications
ManufacturerCP-Carrillo (CP Pistons)
Material2618 forged aluminum
Bore86mm standard (oversizes 86.5 / 87 / 87.5mm also available)
Compression ratio8.5:1, 9.0:1 or 10.0:1 - confirm required option
Part numberSC7459 (8.5:1) / SC7463 (9.0:1) / SC7471 (10:1), 2JZ-GTE - confirm
Pin diameter22mm (0.866 in)
Compression heightapprox 34mm (1.338 in) - confirm per option
Ring setCPN-3386 included
Set quantity6 pistons (inline-6)
MachiningCNC-machined, balanced to plus/minus 1 gram, deep valve reliefs
What's in the box
- 6 forged pistons
- ring set (CPN-3386)
- wrist pins
- pin locks / circlips
Fitment
ApplicationToyota 2JZ-GTE / 1JZ-GTE
InstallRequires professional machining and balancing; wrist pins included, final pin fitting by installer.
1JZ-GTE and 2JZ-GTE typically use different part numbers - confirm exact engine, bore and compression ratio before ordering.
Best suited for
High-boost builds
Engine rebuilds
Drag & circuit racing
Connecting rods, bearings and machine work are not included; bore and compression ratio must match your build.
