Description
Standalone Programmable ECU
Swedish-engineered ECU with a built-in 400kPa MAP sensor, full sequential fuel & ignition, and USB tuning via MTune.
4 / 8Cyl seq / wasted
400 kPaBuilt-in MAP sensor
TripleBoost & launch stages
1000 HzInternal data logging
Overview
The MaxxECU MINI is a compact, fully programmable standalone engine management system from MaxxECU (Sweden). It runs full sequential fuel and ignition on up to 4 cylinders (or up to 8 in wasted spark) via four injector and four ignition outputs, and is tuned over USB with the free MTune PC software using real-time 2D/3D maps.
Built for engine swaps and boosted builds that have outgrown the factory ECU. A built-in 400kPa MAP sensor (3 bar), triple-stage boost control, up to three-stage launch control, anti-lag and shift-cut pack serious motorsport control into a waterproof aluminium case.
Specifications
Part number1995-mini (confirm exact kit SKU)
Cylinder supportUp to 4 sequential, up to 8 in wasted spark
Injector outputs4 (high impedance only)
Ignition outputs4 (5V signal for ignition modules, CDI or coils)
Built-in MAP sensor400 kPa (up to 3 bar / 43.5 PSI boost)
Wideband lambdaNo built-in controller; external wideband via a 0-5V analog input
Boost controlTriple-stage, closed/open loop with compensation tables
Launch / anti-lagUp to 3-stage launch, rolling launch, shift-cut, anti-lag
Data logging8 MB internal up to 1000 Hz; PC logging 20 Hz via USB
Tuning softwareMTune PC software over USB (real-time 2D/3D maps)
ProcessorARM Cortex-M3 120 MHz (2000 fuel/ign updates per second)
Dimensions85 x 120 x 43 mm (excl. connectors), 245 g (ECU only)
ConnectorWaterproof aluminium case, sealed micro-USB; pin count confirm

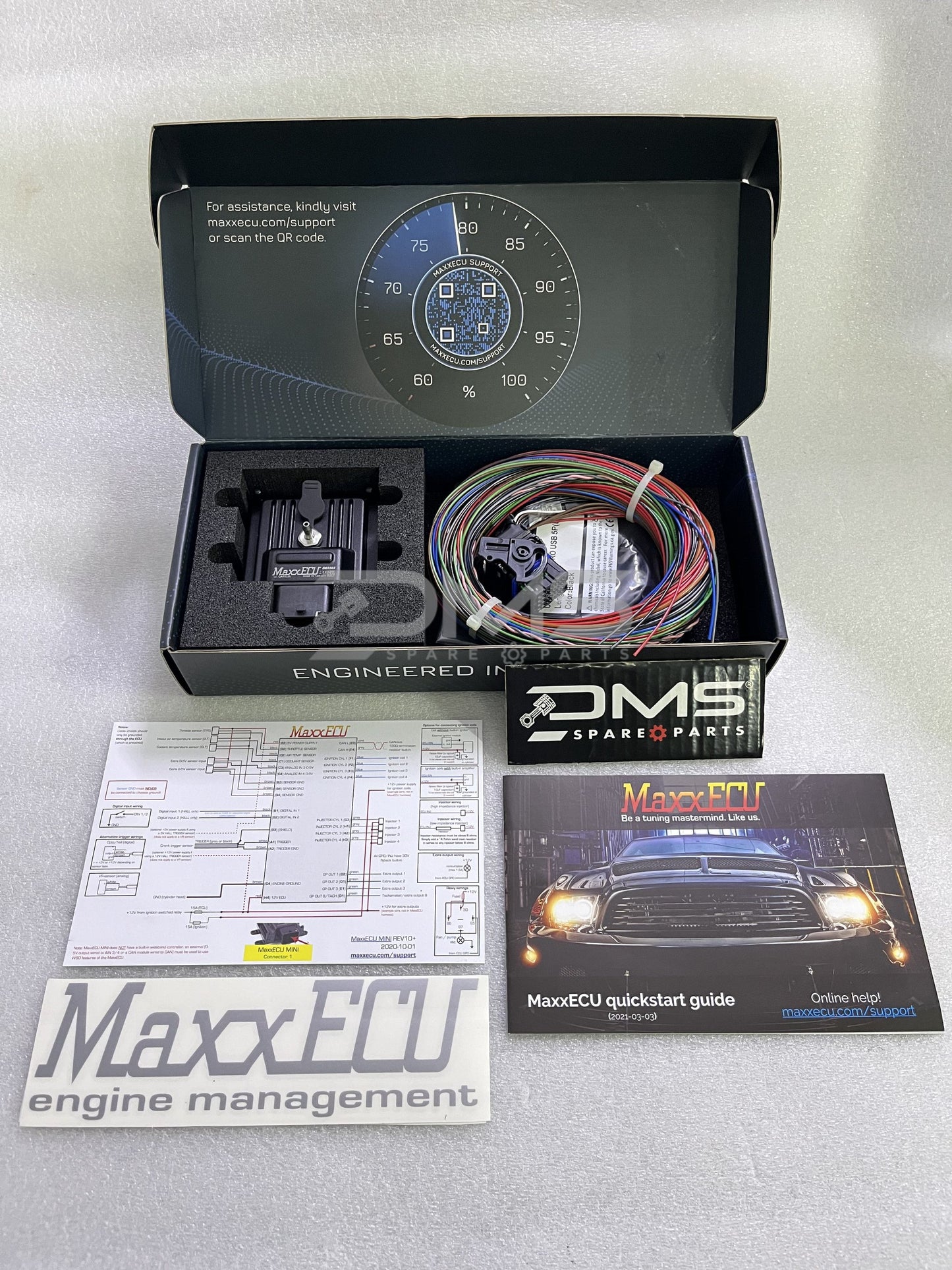

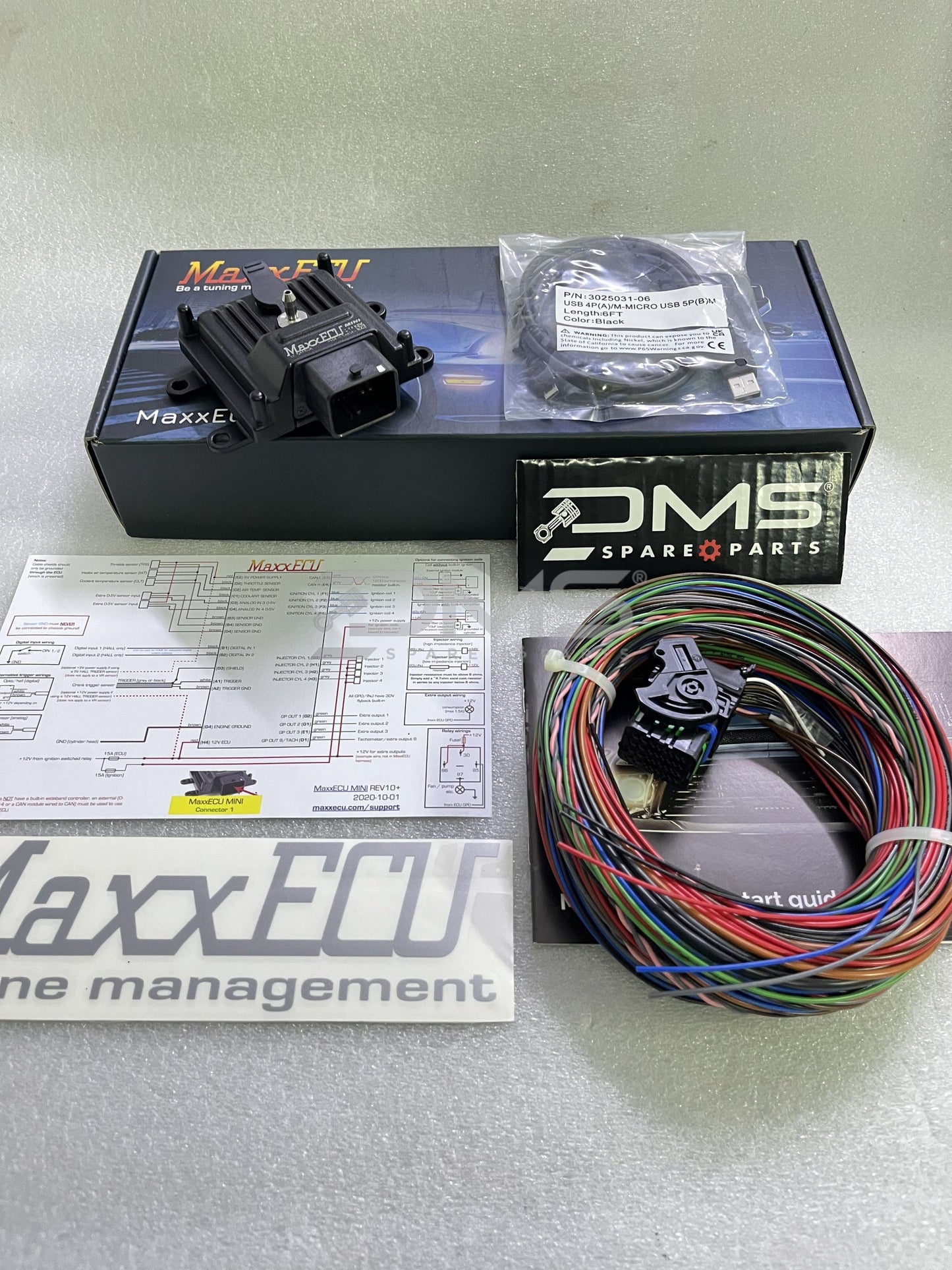

What's in the box
- confirm which kit ships — Unit only / BASIC (ECU + connectors + accessories) / STANDARD (ECU + harness + accessories)
Fitment
ApplicationUniversal standalone (engine-dependent)
InstallRequires a wiring harness (or patch/adapter harness) between the ECU and engine; all tuning is done over USB with MTune.
Confirm your engine's crank/cam trigger pattern is supported and that you have a suitable patch/adapter or universal harness before ordering — the MINI is not plug-and-play for a specific car.
Best suited for
Engine swaps
Forced induction
Motorsport tuning
No built-in wideband controller — an external wideband kit is needed for closed-loop AFR. High-impedance injectors only.
