Description

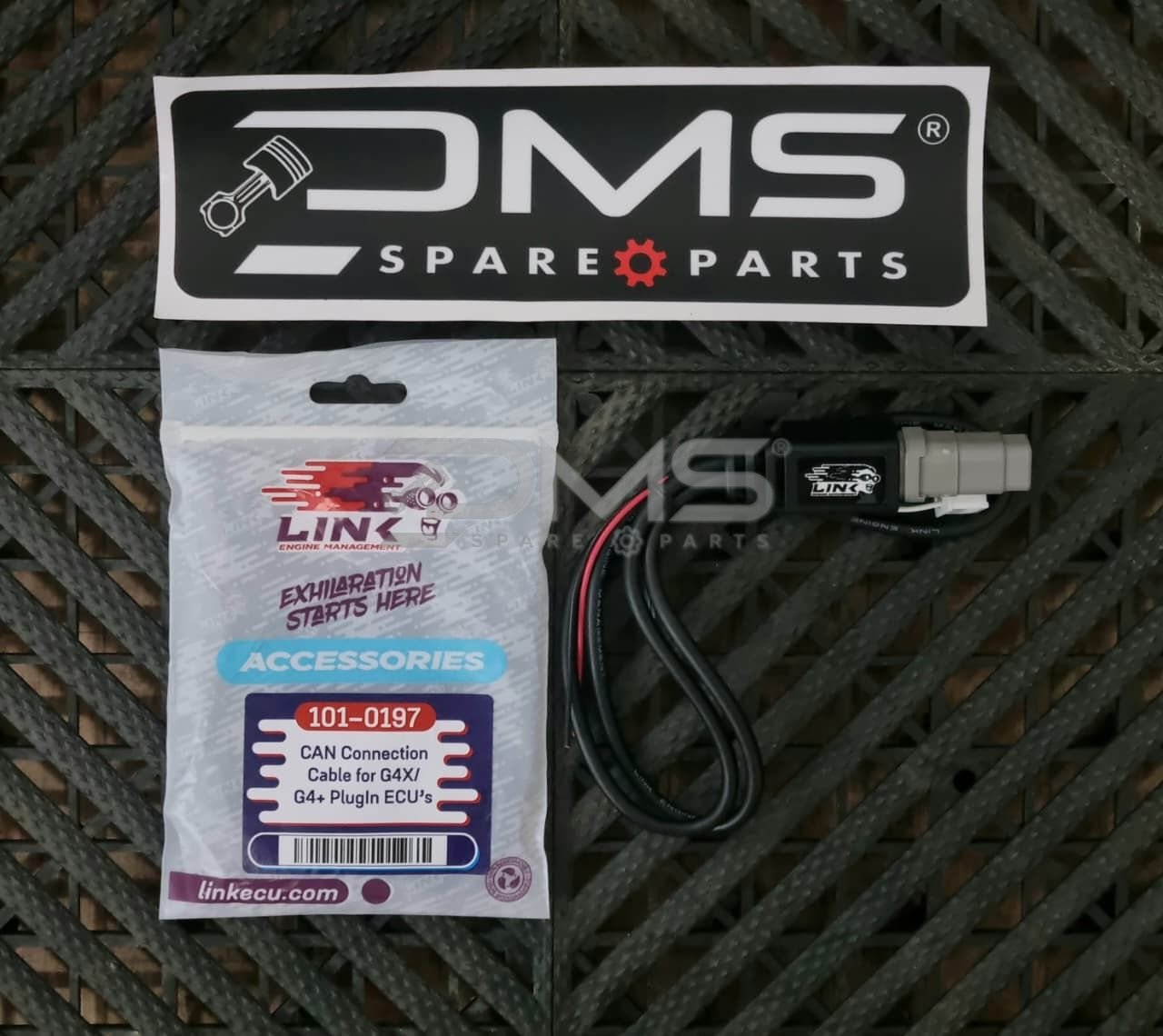

CAN Connection Cable
Adds a CAN bus port to your Link PlugIn ECU — plugs onto the 5-pin JST header on the board and breaks CAN out to a sealed DTM4 connector.
5-pinJST CAN header
DTM4Deutsch output plug
G4+/G4XLink PlugIn ECUs
300mmCable length
Overview

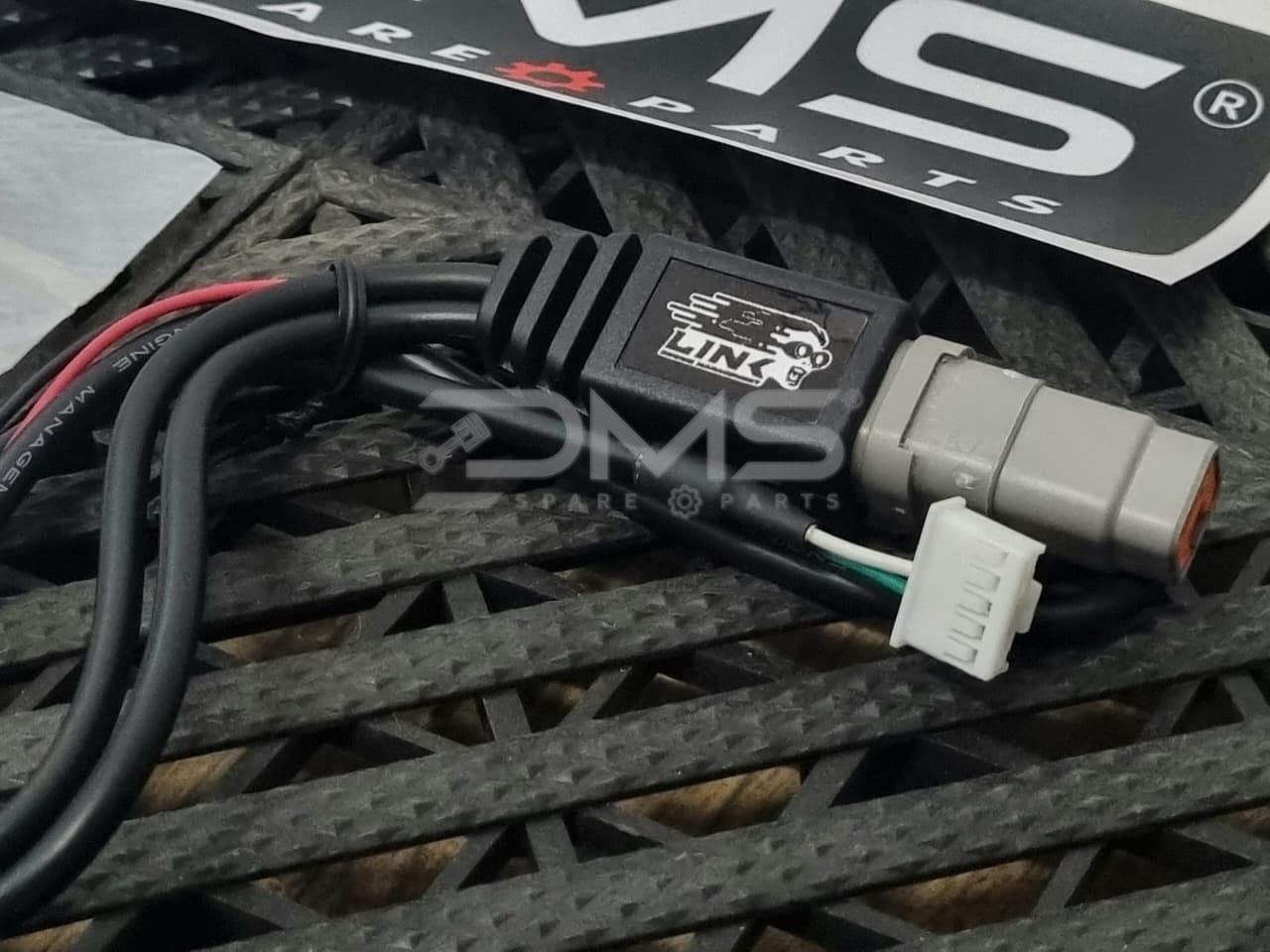

The Link CANJST (part 101-0197) is a plug-and-play CAN connection cable for Link G4+/G4X PlugIn ECUs. It plugs onto the 5-pin white JST CAN header on the ECU's circuit board and routes the CAN bus out to a sealed Deutsch DTM4 male connector, with 12V and ground supplied via a flying lead. Twisted-pair CAN wiring keeps the signal clean, and it clicks together with little to no soldering or crimping.
Use it to give a Link PlugIn ECU a CAN bus connection so you can run a CAN dash, keypad, CAN Lambda or other CAN devices. The DTM4 output mates directly with Link's CAN accessories such as the CANEXT extension and CANTEE splitter cable.
Specifications
Part numberCANJST (101-0197)
FunctionAdds a CAN bus connection to Link PlugIn ECUs
ECU-side connector5-pin white JST (plugs onto CAN header on the ECU PCB)
Output connectorDeutsch DTM4 male, sealed
CAN wiringTwisted pair (CAN-Hi / CAN-Low) for signal integrity
Power / ground12V and ground supplied via flying lead
Cable length300 mm (per Link retailers); flying-lead length: confirm
Compatible accessoriesLink CANEXT extension, CANTEE splitter (DTM4)
Not compatibleECUs with a 4-pin white CAN connector — use CANJST4 (101-0198)
AssemblyPlug-and-play; little to no soldering or crimping
What's in the box
- One Link CANJST CAN connection cable (5-pin JST to DTM4 male, with 12V/ground flying lead)
Fitment
ApplicationLink G4+ / G4X PlugIn ECUs with a 5-pin JST CAN connector
InstallPlugs onto the 5-pin JST CAN header on the ECU's circuit board and routes CAN out to the DTM4 connector — no soldering or crimping needed.
Confirm your Link PlugIn ECU has the 5-pin JST CAN header. ECUs with a 4-pin white CAN connector (e.g. S2000 AP1, WRX V5-6, DC5/RSX, WRX11, MX5 NB1/NB2) need the CANJST4 (101-0198) instead.
Best suited for
CAN dash wiring
PlugIn ECU builds
Link CAN accessories
5-pin JST version only. Not compatible with 4-pin CAN connector ECUs, which require the CANJST4. Check the CAN connector on your ECU board before ordering.
