Description
Water/Methanol Injection
Suppress detonation and drop intake-air temps on forced-induction engines running up to 35 PSI of boost.
35 PSIMax boost supported
1.15 galFluid reservoir
200 PSIPump pressure
3 nozzles250/500/1000 cc
Overview
The AEM V3 Water/Methanol Injection Kit (30-3300) is a boost-dependent injection system for forced-induction and high-compression petrol engines. An onboard internal MAP sensor meters the water/methanol spray progressively with boost, cooling the intake charge and suppressing detonation so you can safely run more timing and boost. A 200 PSI internally-bypassed pump feeds a machined billet injector through one of three interchangeable nozzles, drawing from a 1.15-gallon reservoir with a low-fluid sensor.
Built for tuners running turbo, supercharged or high-compression setups up to 35 PSI who want lower intake-air temperatures and knock margin without swapping their fuel system. Set the start and full-activation points to match your build; an LED dash light reports system status and low-fluid warnings.
Specifications
Part number30-3300
ControllerBoost-dependent (progressive), onboard internal MAP
Max boostUp to 35 PSI
Pump200 PSI internally-bypassed, EPDM seals
Reservoir1.15-gal tank, anti-starvation, low-fluid sensor
Nozzles3 interchangeable (250 / 500 / 1000 cc/min)
InjectorMachined billet aluminium, integral check valve
Injection tubing20 ft high-pressure nylon
FluidWater/methanol mix
Dimensions / weight— confirm —

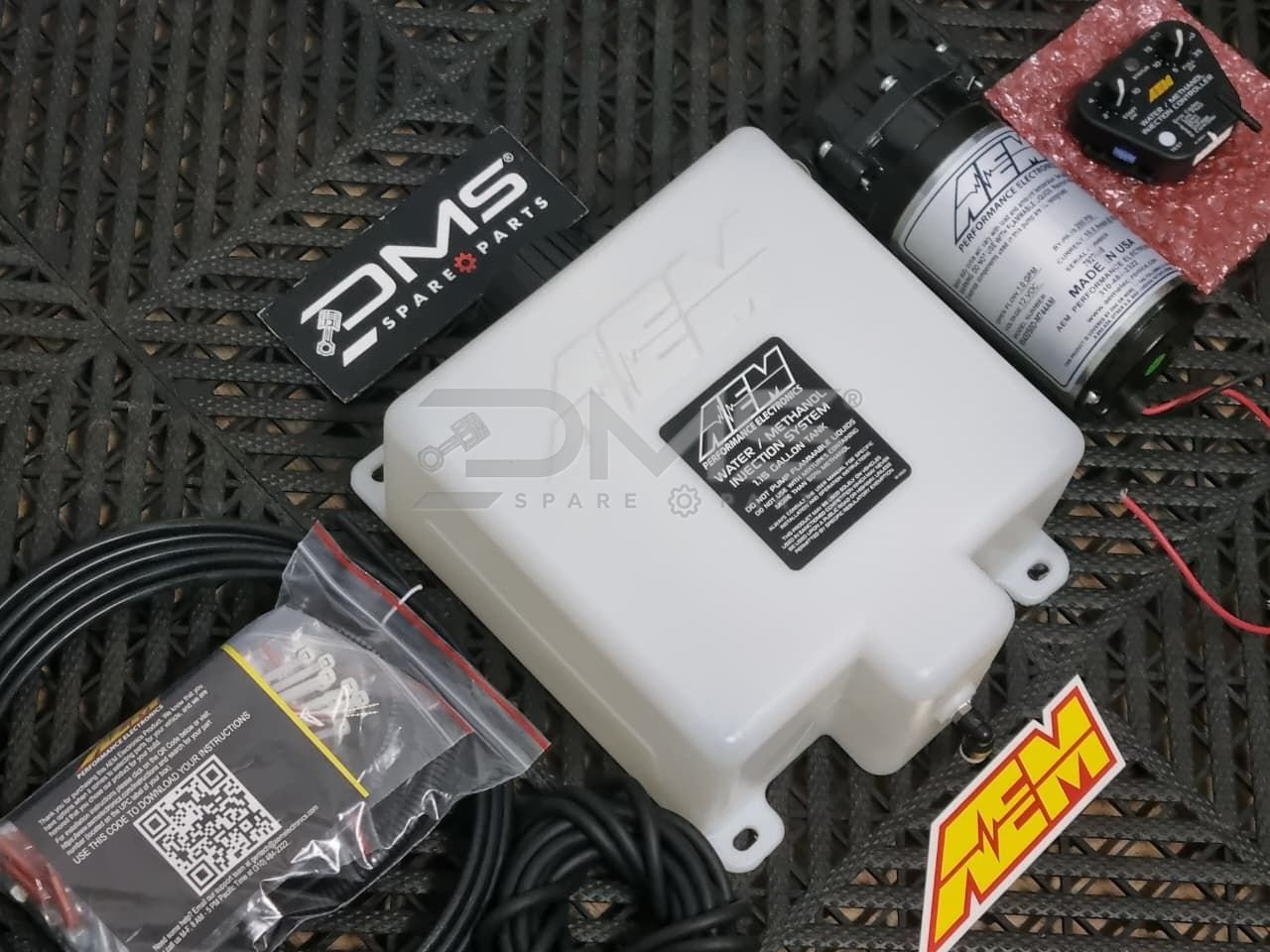

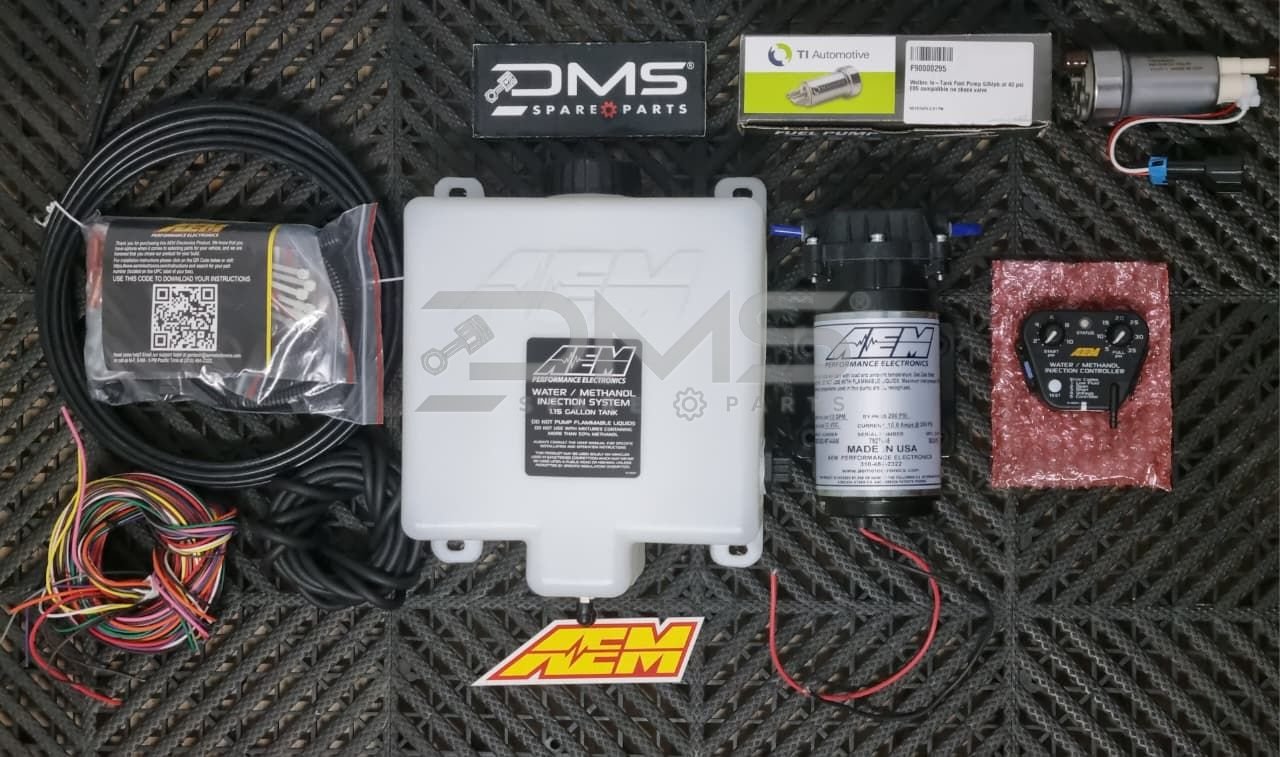

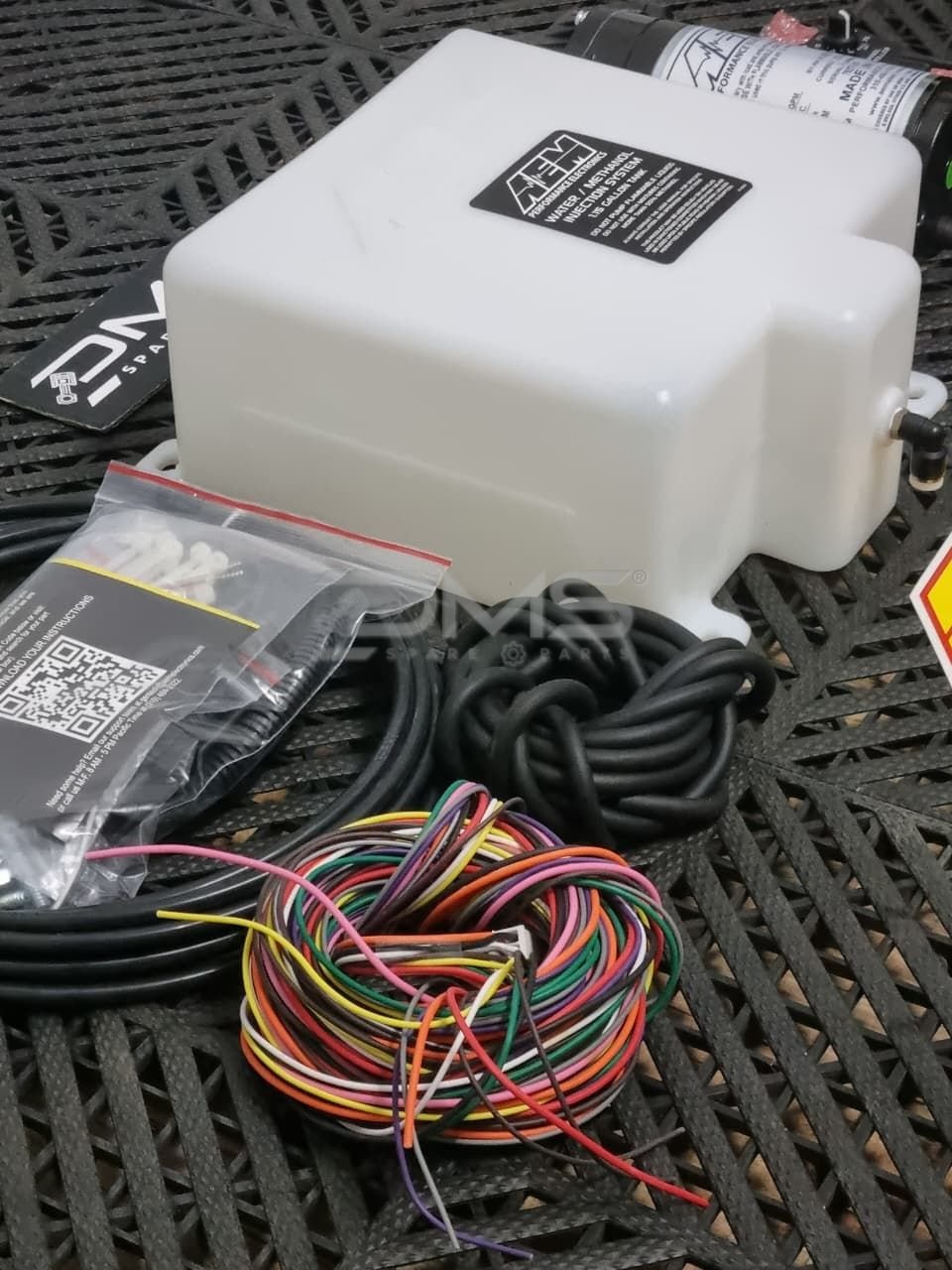

What's in the box

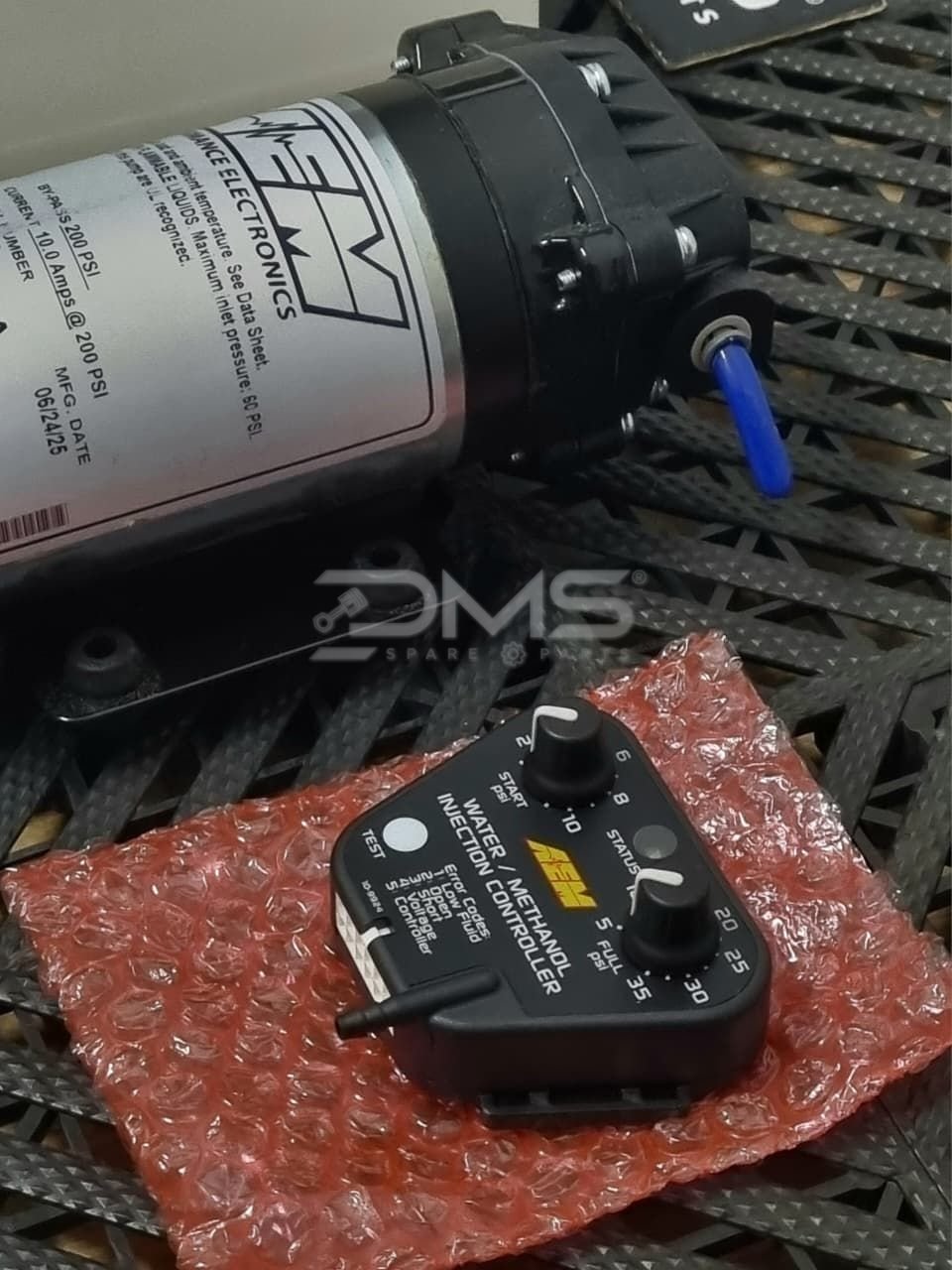

- 200 PSI water/methanol pump

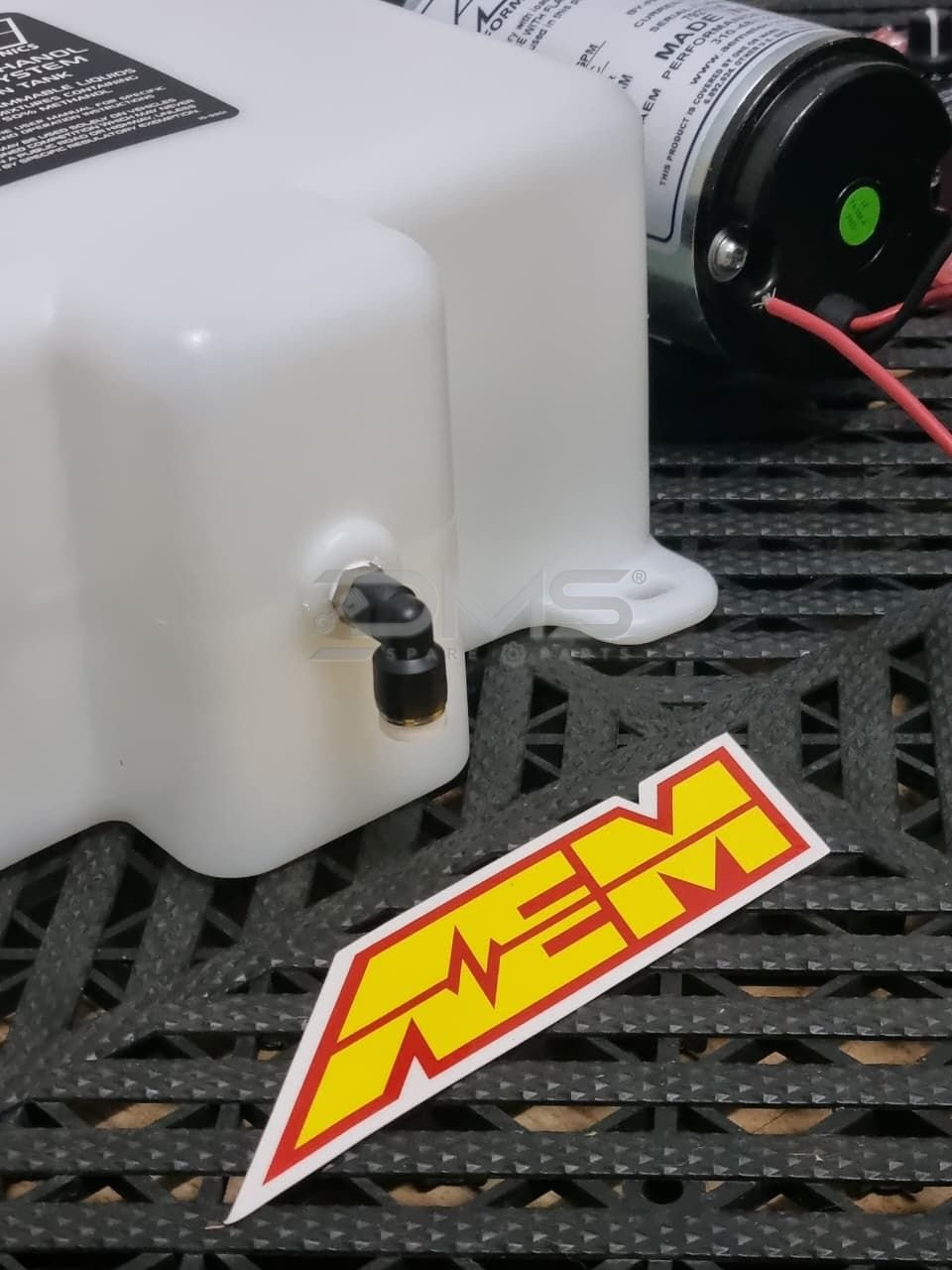

- 1.15-gal tank with low-fluid sensor

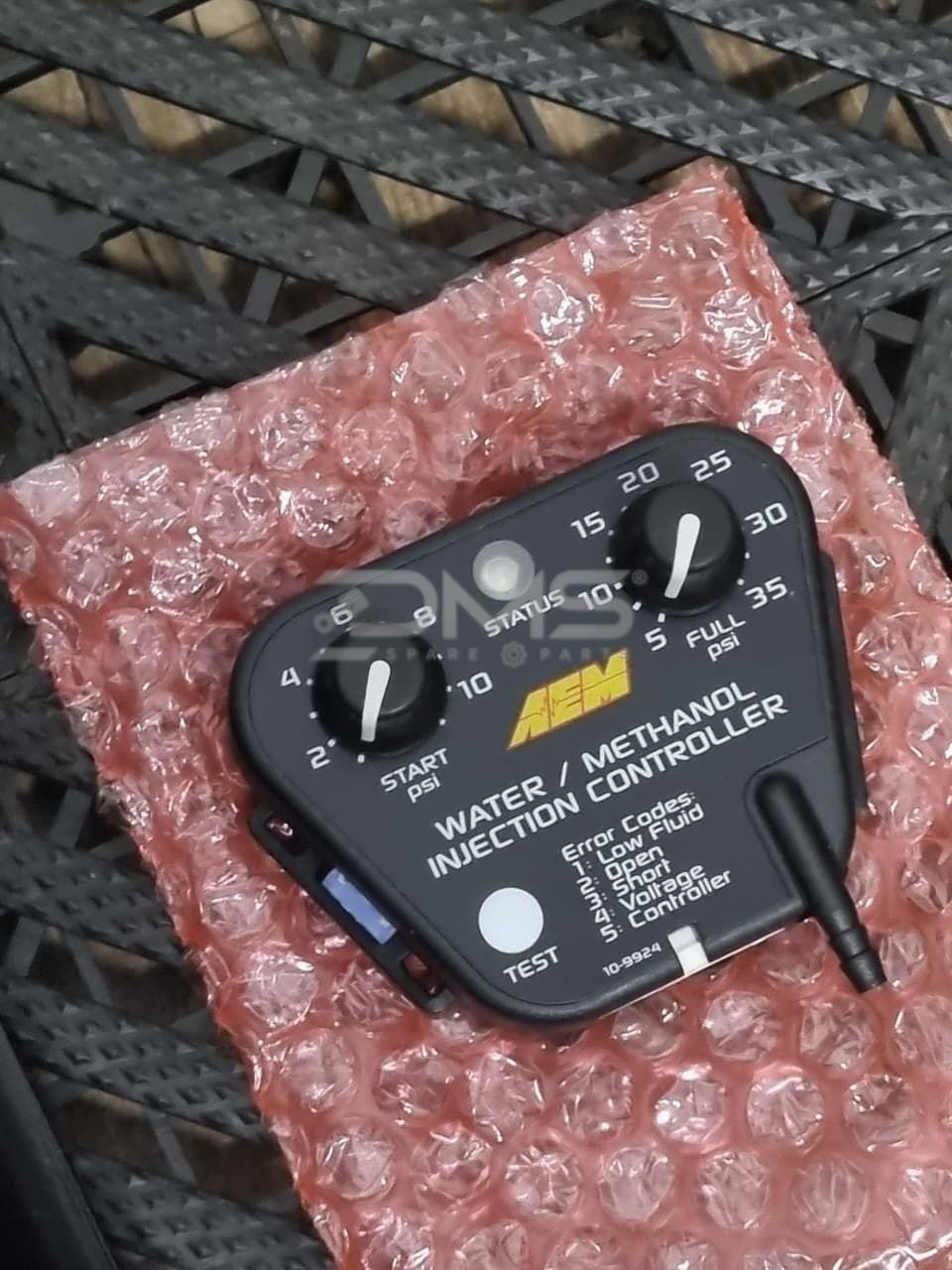

- Boost-dependent controller (internal MAP)
- Billet injector with check valve
- 3 nozzles (250/500/1000 cc)
- Wiring harness
- 20 ft injection tubing
- LED status light
Fitment
ApplicationUniversal — forced-induction & high-compression petrol engines up to 35 PSI
InstallInjector mounts in the charge pipe (usually after the intercooler); controller needs a manifold boost reference and switched 12V.
Universal kit — match nozzle size to your boost/HP target.
Best suited for
Forced induction
Knock control
Intake-air cooling
High-compression NA
Pump-gas power
Keep the reservoir topped with a proper water/methanol mix and tune a failsafe — running dry removes knock protection. It supplements fuelling; it is not a replacement fuel system.
Fast dispatchShips in 24–48h
Genuine productAuthentic AEM
Easy returns10-day returns, unused items
Fitment helpWe'll confirm before you buy
